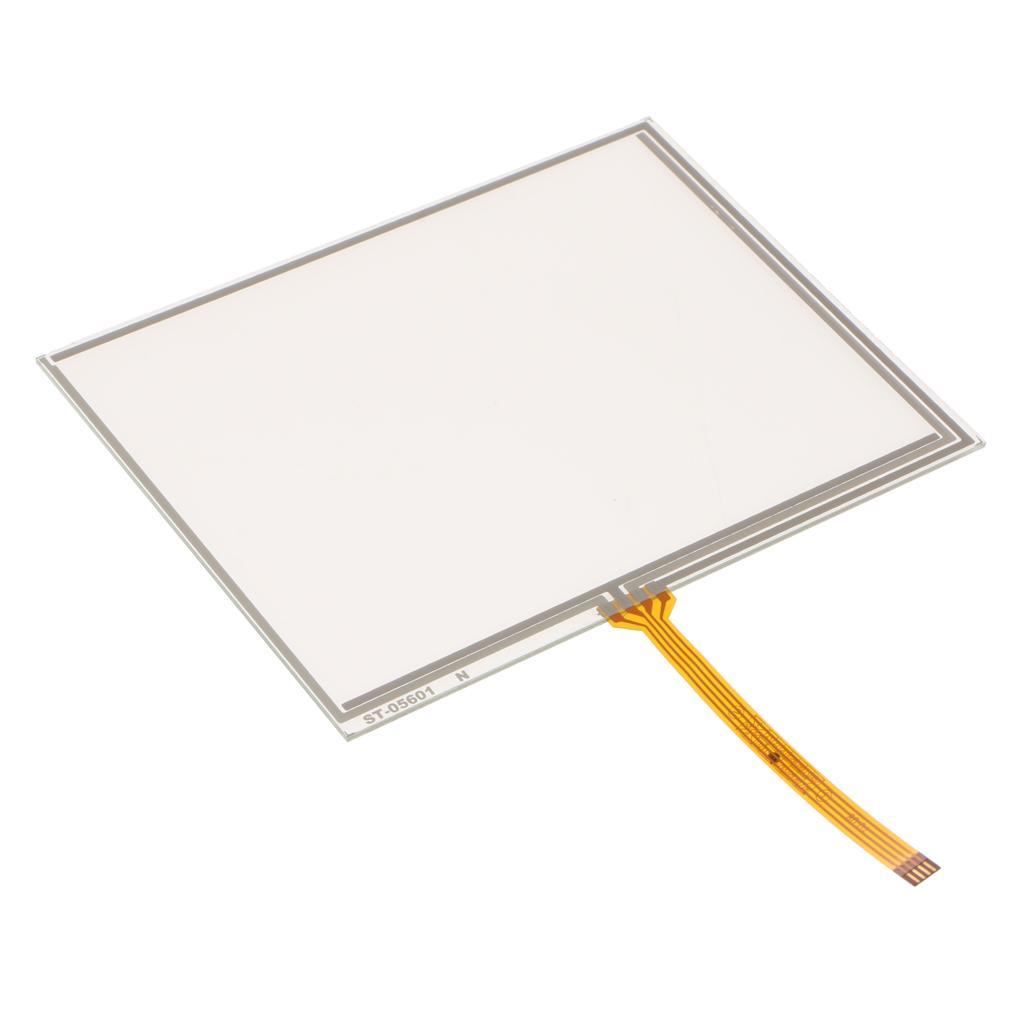

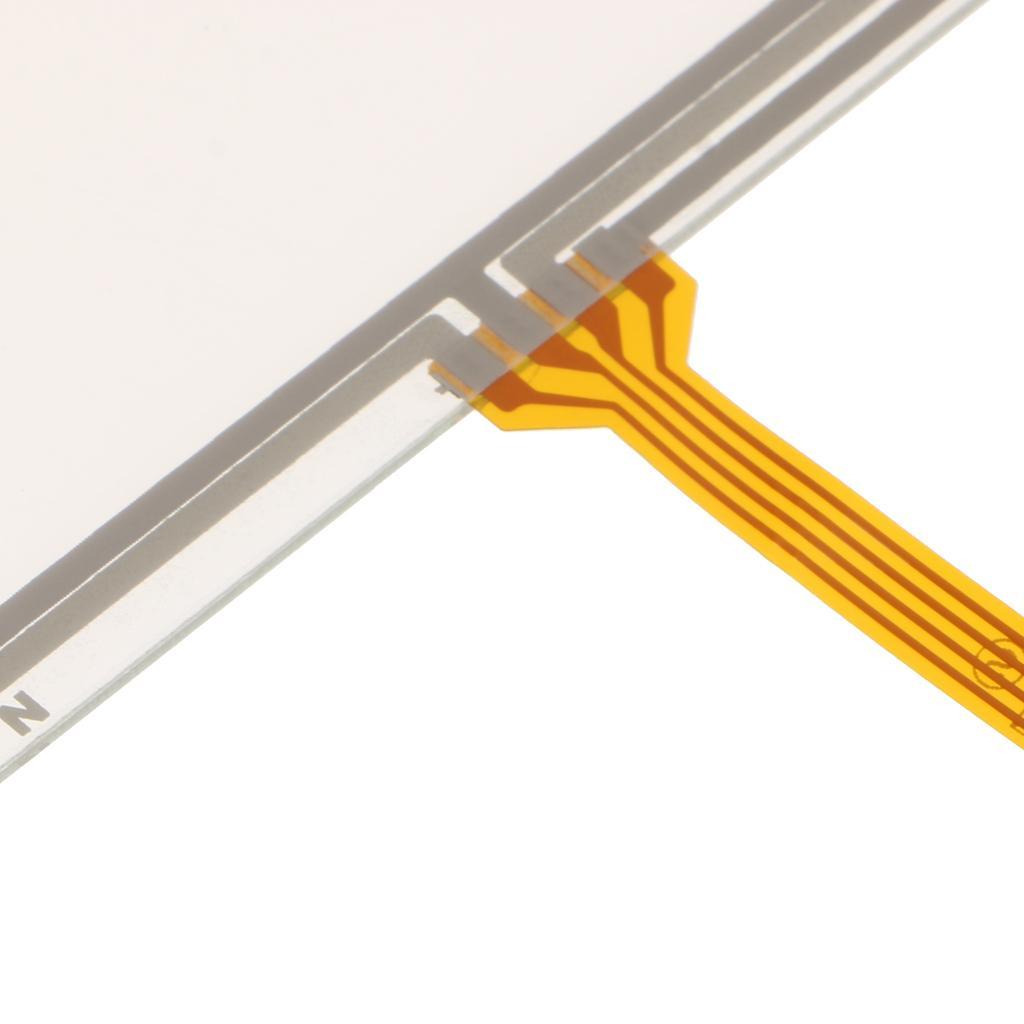

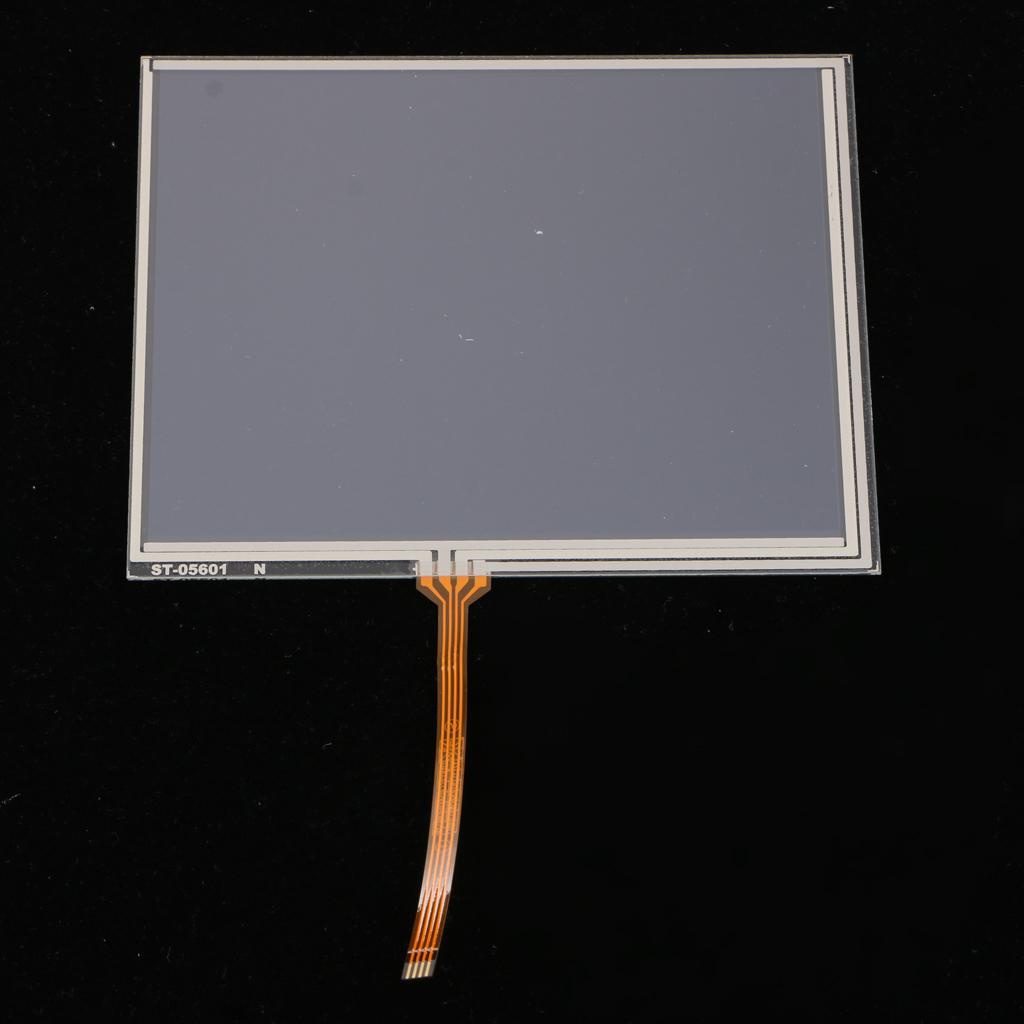

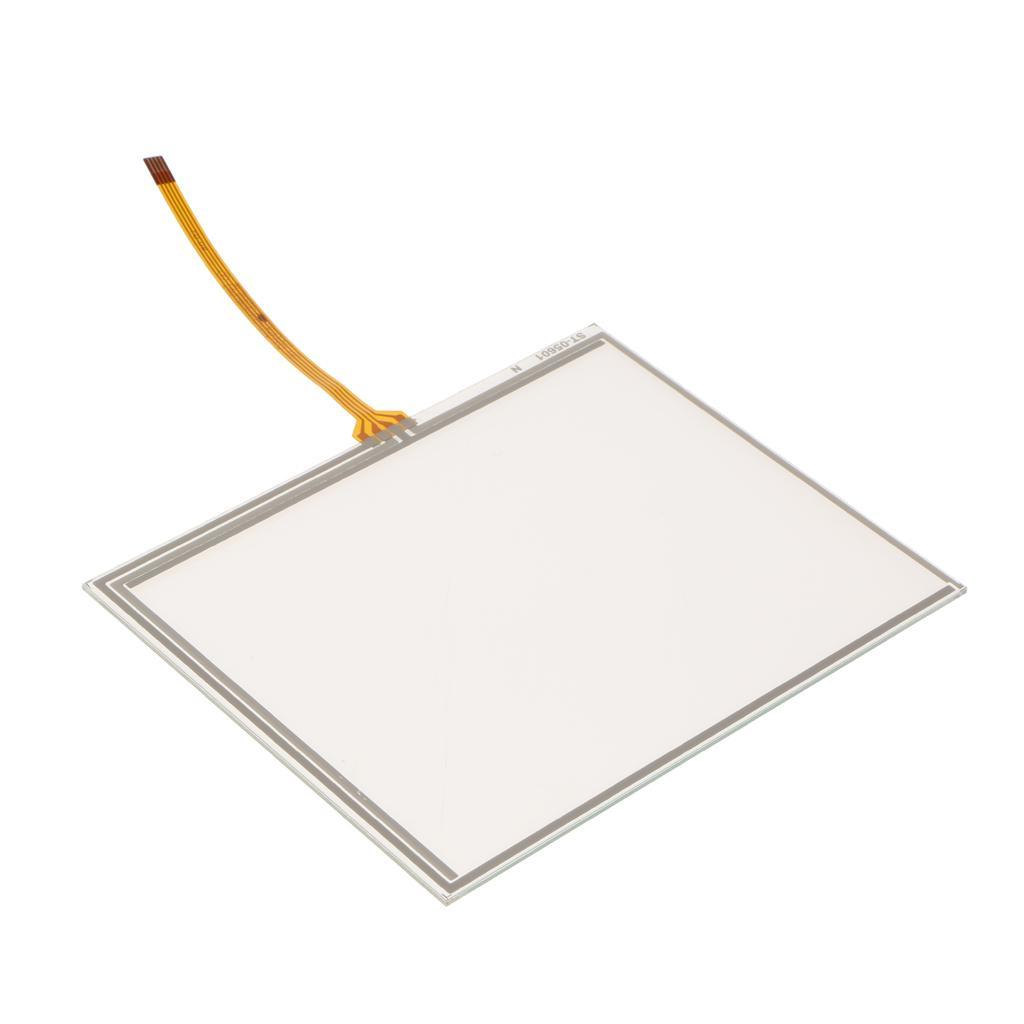

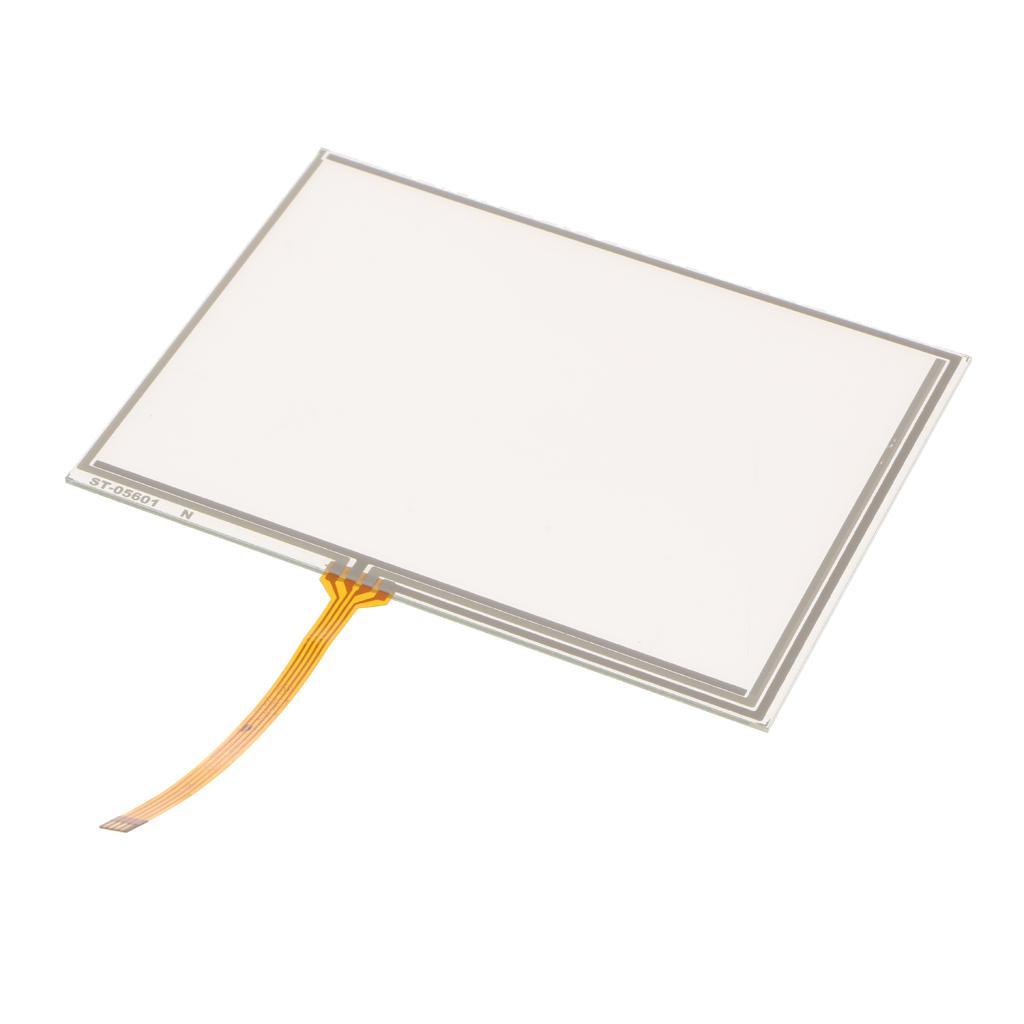

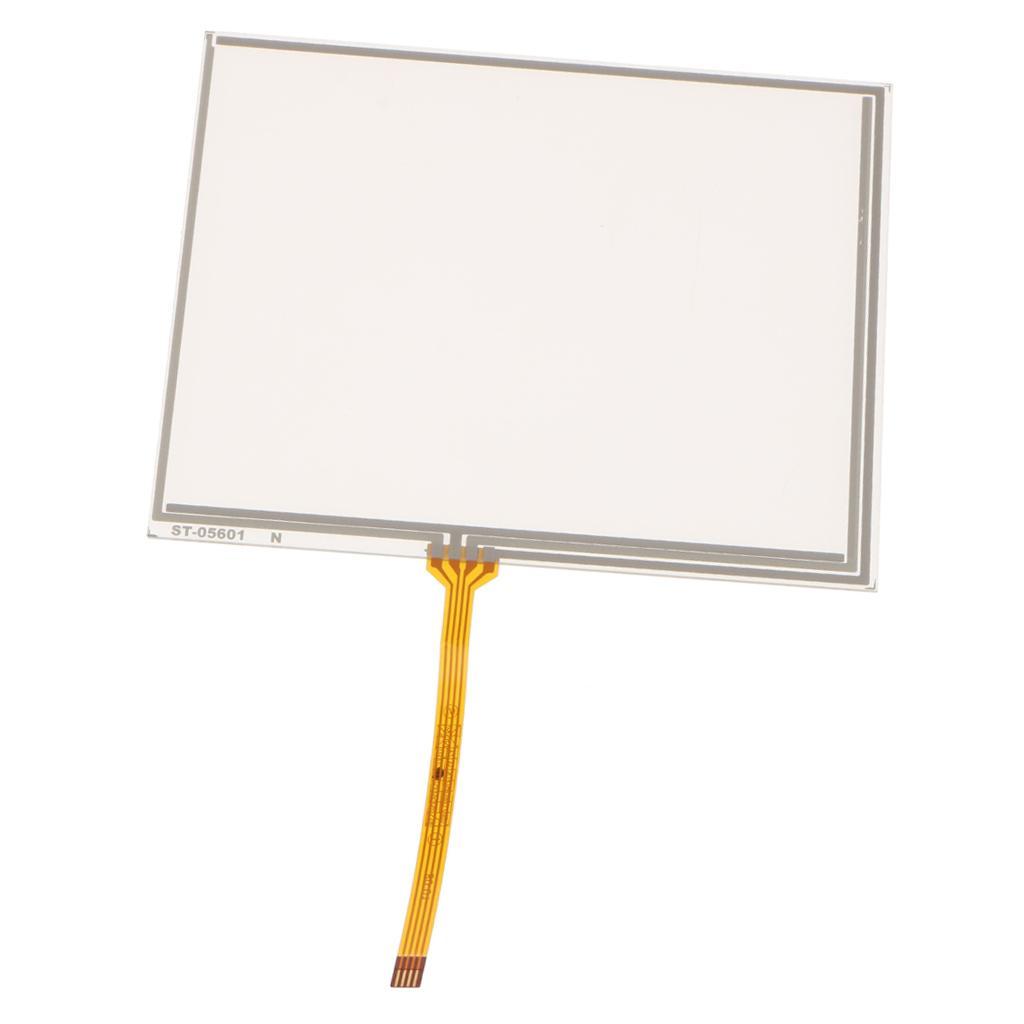

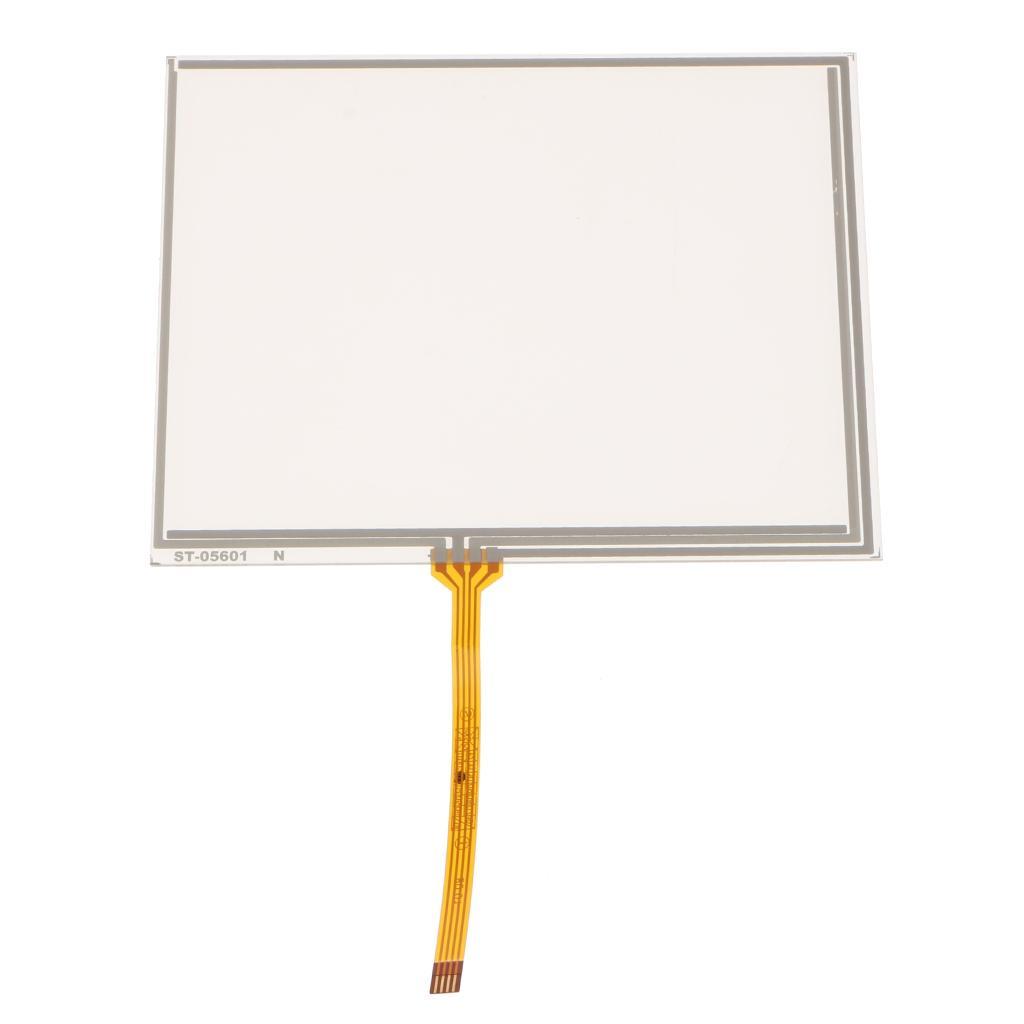

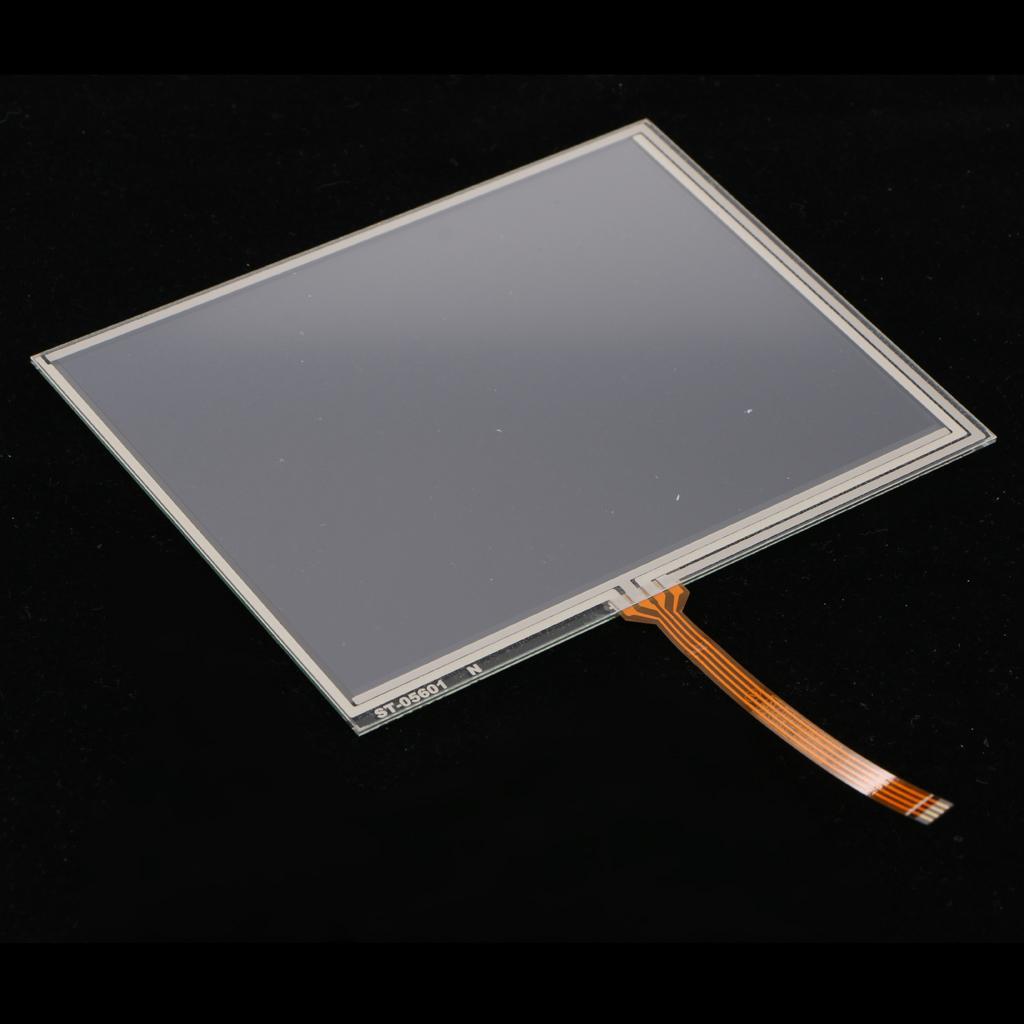

Replacement 5.6" 4 Wire Resistive Touch Screen Panel

Description: 5.6Inch 4 Wire Resistive Touch Screen Panel Digitizer 127x98mm For 5.6\" Car DVD GPSScreen structure: ITO Film is bonded to ITO Glass with DOT point isolationDestructive resistance: 3-12mm special process fully tempered optical glass as the substrate. Use 1 lb. at 130 cm height to freely fall to the center of the glass without damage to the glass.Sealing characteristics: The high sealing material tightly closes the filter device, the frame and the riot glass to prevent liquid leakageDurability: Mohs hardness 3H (according to ATSM D3363 standard) Specification: Connector: 2.54mm pitch, standard AMP87499-9Touch media: fingers, gloved hands, pens, credit cards, etc.Screen thickness: 1mmScreen size: 5.6 inchesResolution: 4096x4096Response time: less than 6 milliseconds (finger input)Touch force: 15-40gr using a hardness of 600 diameter 16mm silicone greaseConversion speed: less than 20msPosition accuracy: standard deviation less than 2 mmM touch density: touch resolution 4096x4096 touch pointScreen error: less than 1.5%Supply voltage: DC+5VScreen resistance: 100Ω-450Ω (between X1-X2); 350Ω~1000Ω (between Y1-Y2)Insulation resistance: greater than 20MΩ at DC25VElectrostatic protection: can withstand 20 discharges of 15 kV voltage randomly distributed on the screen surface (per IEC 801-2; 150pF and 150Ω)Transmittance: 75-85% (when the wavelength is 550 nm)Working temperature: -10 ° C -60 ° CStorage temperature: -20 ° C -70 ° C Package Includes: 1 Piece 5.6Inch Resistive Touch Screen Panel Digitizer Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
