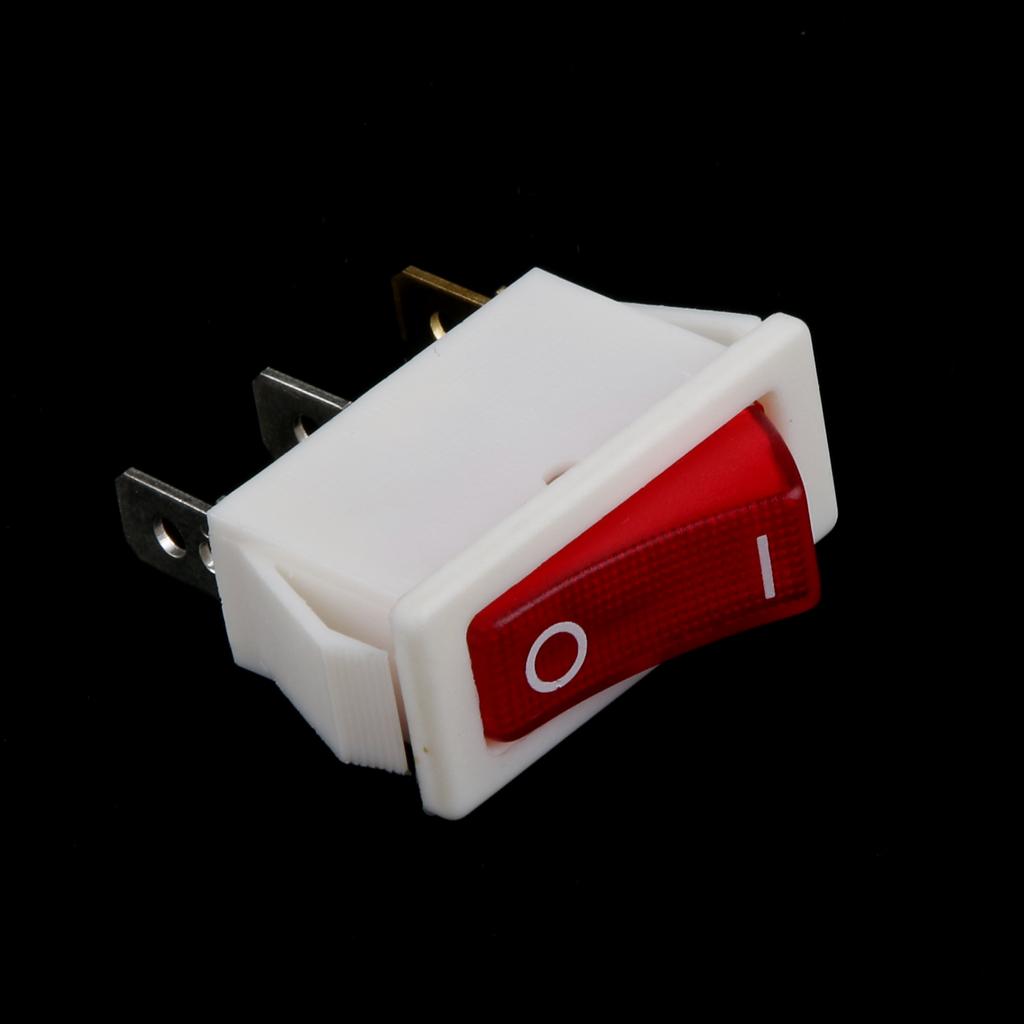

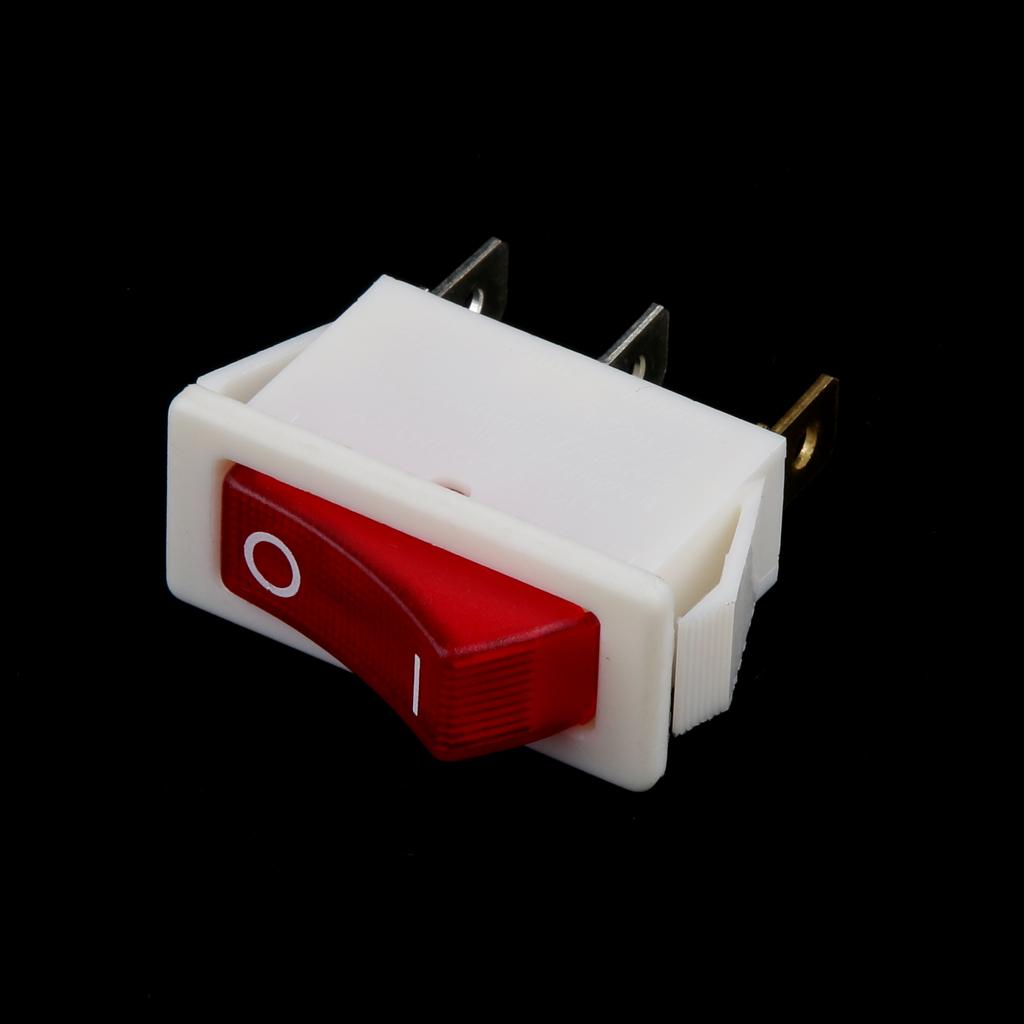

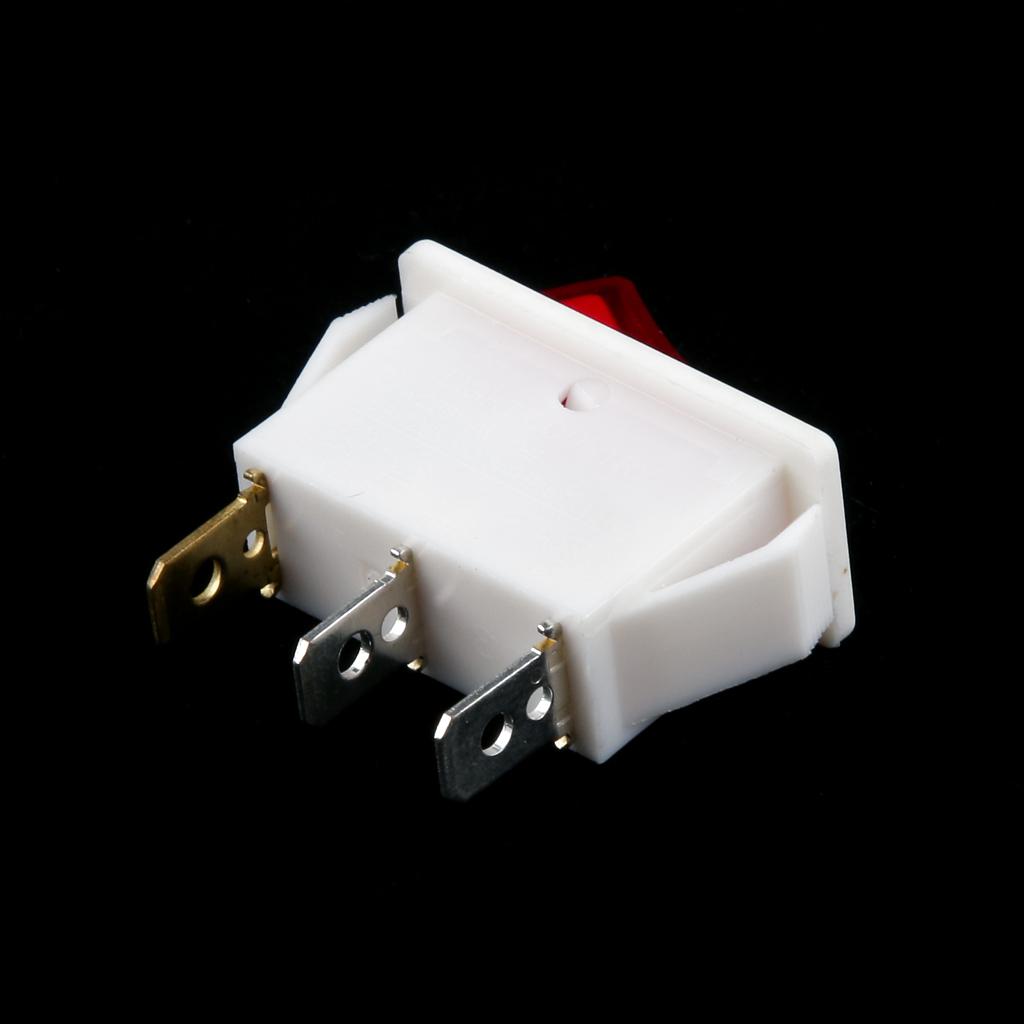

3 Pin Switch Button 16A/250V 20A/125V AC for Car Motorbike Boat DIY
Description: Application for car, motorcycle, boat, water dispenser, or other home appliances Electrical Rating : 20A 125VAC/16A 250VAC(UL) 10A/15A/16A 250VAC( ) 10A 250VAC/15A 12...

WonderTECH
@wondertechĐánh giá
Theo Dõi
Nhận xét
Description: Application for car, motorcycle, boat, water dispenser, or other home appliances Electrical Rating : 20A 125VAC/16A 250VAC(UL) 10A/15A/16A 250VAC( ) 10A 250VAC/15A 125VAC(UL) Mechanical life: Over 30000 cycles Electrical life: Over 10000 cycles Contact resistance: <20m&; Specification: Insulation resistance: >1000M&; High voltage resistance: >1500V 1 min. Ambient temperature: Terminal side -20 to +85℃ Actuating side -20 to +55℃ Storage temperature: -30 to +80℃ Max Atmospheric humidity: Max.85% Actuating force: 4~8N(depends on different switch function) Flammability: UL94 V-2 Temperature at the terminal: Max 30℃ (UL1054) Solder ability of terminal: Max 350℃,3s MATERIALS Housing: Nylon 66 Rocker: PC & PA66 Contacts: Silver Alloy Terminal: Brass Silver Plated Lamp: Neon Lamp,Tungsten Lamp Spring: SWP,SUS Movable Arm: Brass Silver Plated Package Includes: 1 x Switch Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
Thương hiệu
OEM
Xuất xứ thương hiệu
China
Xuất xứ (Made in)
China
Sản phẩm có được bảo hành không?
Không
