Bảng Mạch Chiết Áp LM1036 Cân Bằng Âm bass Mới
Using LM1036 tones chip, SMD production process, Small size, stable performance. Power input increased the rectifier bridge, can be AC and DC input, when DC input don't need distinguish between positive and negative, easier to use. with Volume--Balance--Treble--Bass p
Alittlesetrtop.vn
@alittlesetrtop.vnĐánh giá
Theo Dõi
Nhận xét

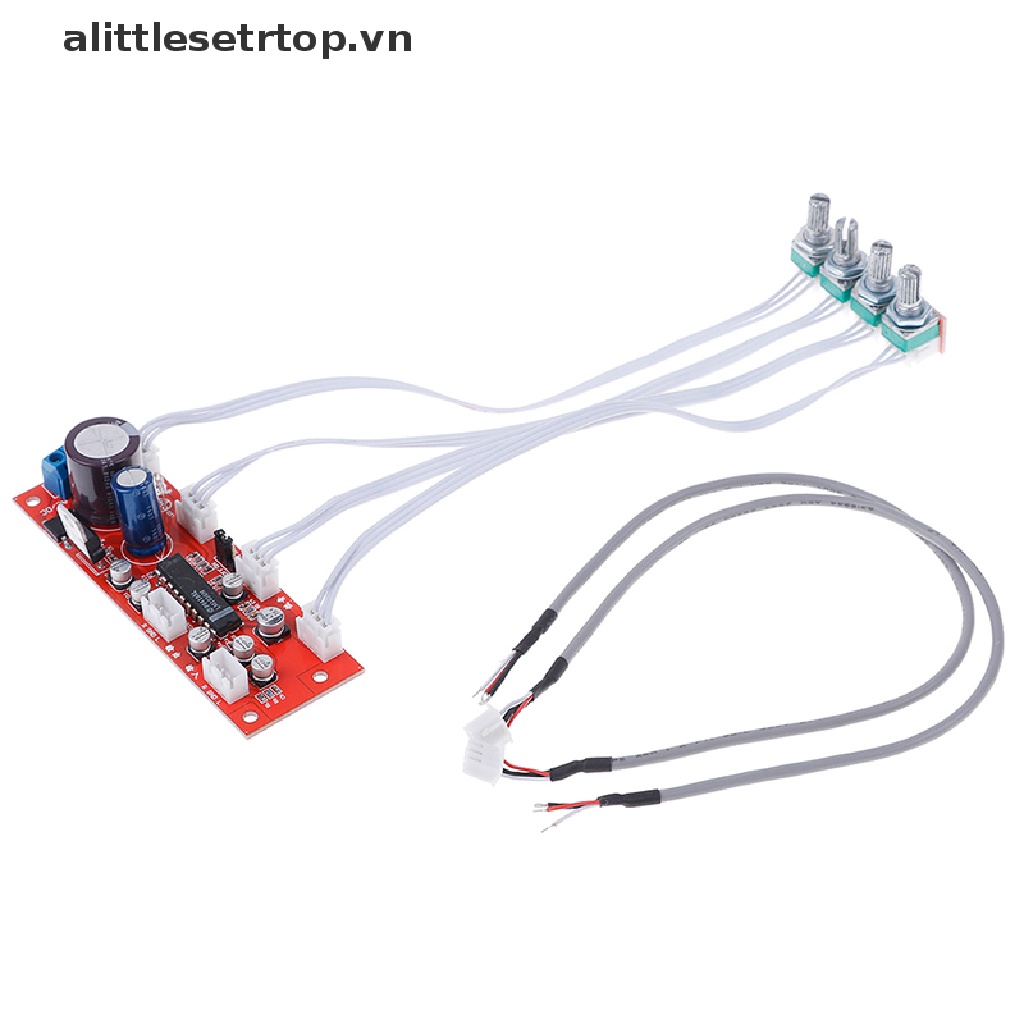

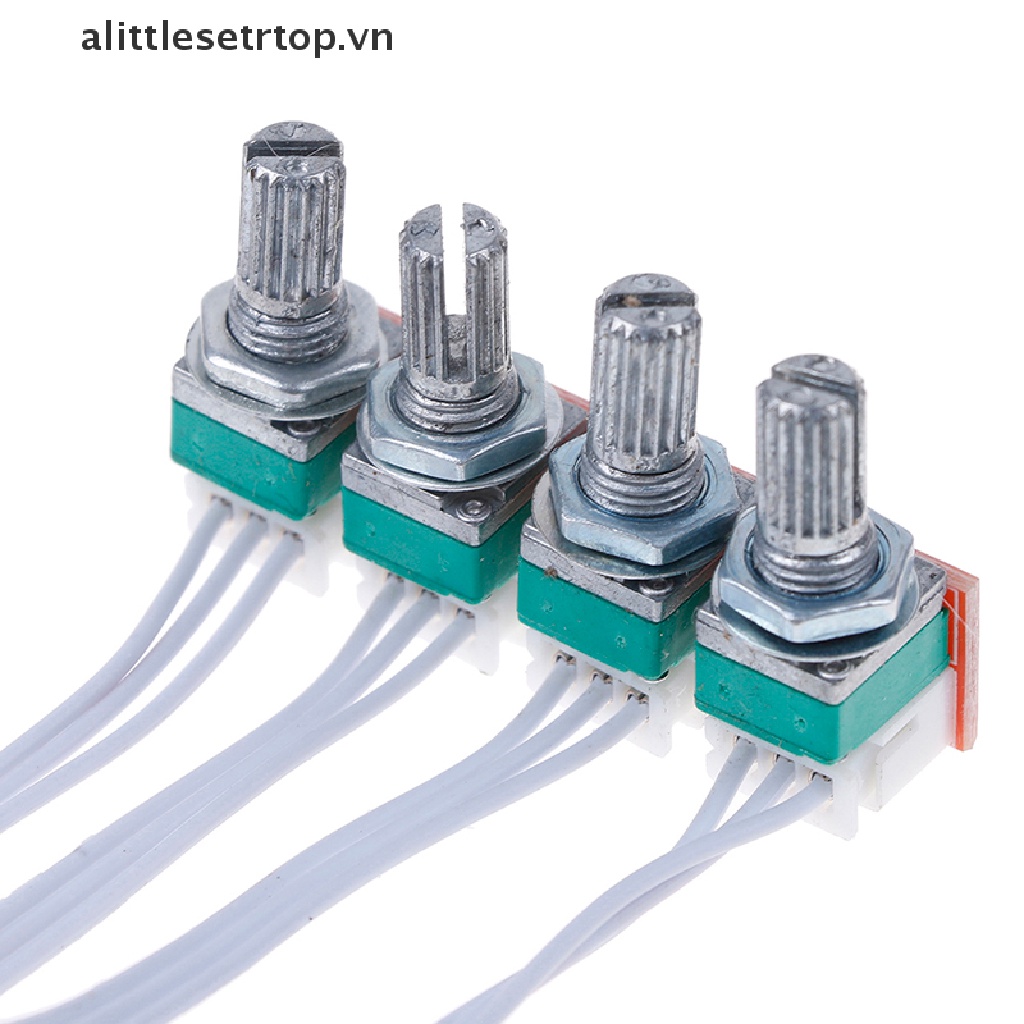

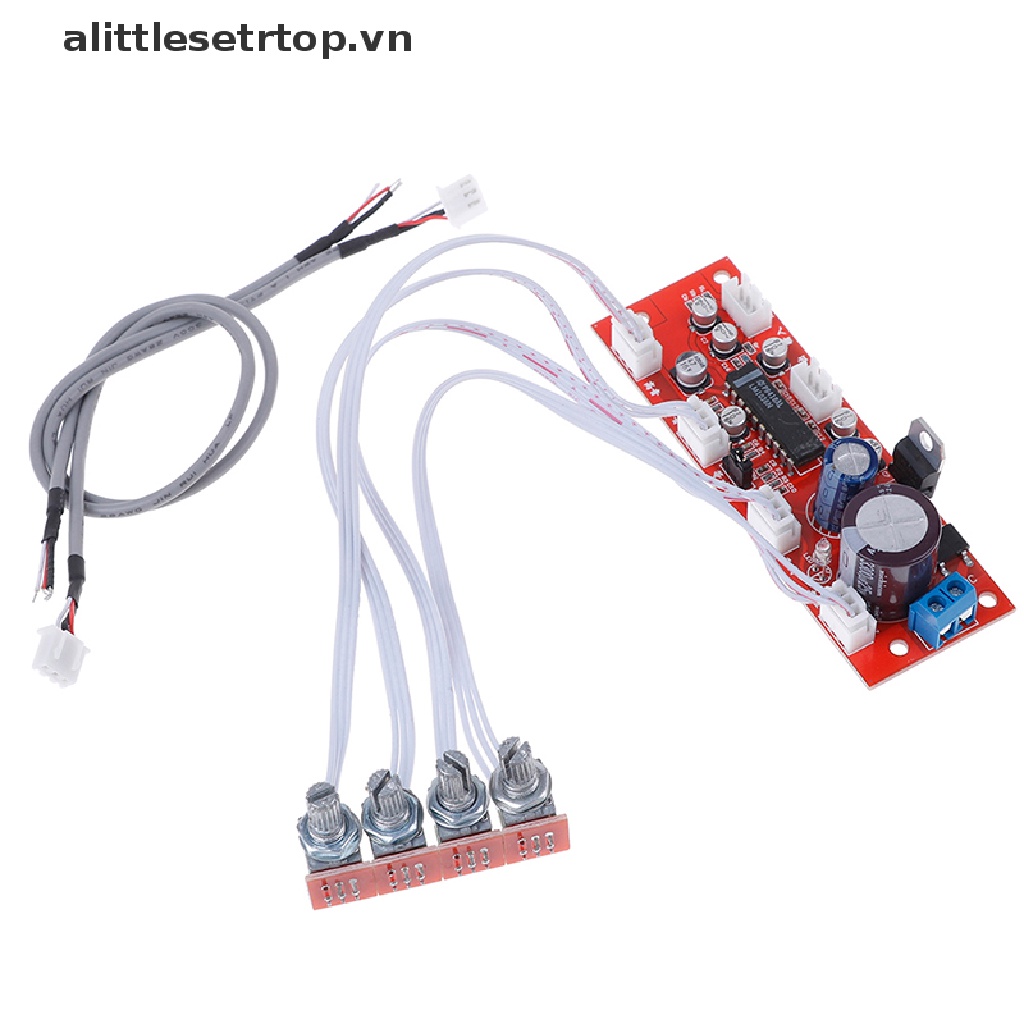

Using LM1036 tones chip, SMD production process, Small size, stable performance. Power input increased the rectifier bridge, can be AC and DC input, when DC input don't need distinguish between positive and negative, easier to use. with Volume--Balance--Treble--Bass potentiometer. Input and Output coupling capacitors using imported brands chip capacitor, power supply filter capator used 3300uf/25V+2200uf Brand capacitance, optimize the alignment, better performance. Working Voltage: DC 12V-24V or AC 9V-16V Board Size: 100mm x 33mm Potentiometer Spacing: 25mm Potentiometer Wire Length: 200mm Packing List: 1pcs x LM1036 Tone Board (Separate Potentiometer Type) 2pcs x 200mm shielded wire
