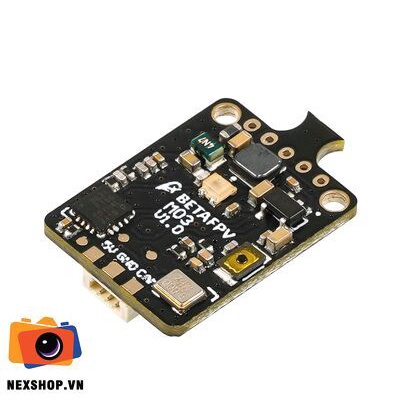

Betafpv M03 25mW-350mW 5.8G VTX
Specification Item: M03 5.8G VTX Output power: 25/100/200/350mW (adjustable) Supply voltage range: 4.5-5.5V Weight: 1.1g (antenna not included) VTX internal size: 18X14mm Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio Modulation ty
Fpv Shop
@binhminh4285Đánh giá
Theo Dõi
Nhận xét

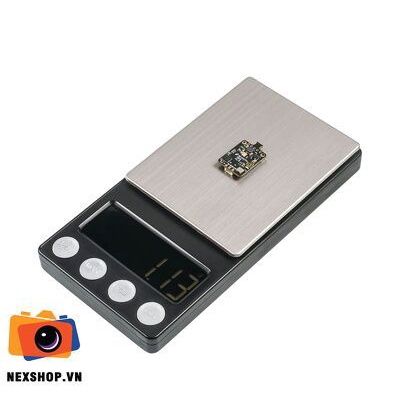

Specification Item: M03 5.8G VTX Output power: 25/100/200/350mW (adjustable) Supply voltage range: 4.5-5.5V Weight: 1.1g (antenna not included) VTX internal size: 18X14mm Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio Modulation type: FM Frequency control: PLL All harmonic: Max -50dBm Frequency stability: ±100KHz (Typ.) Frequency precision: ±200KHz (Typ.) Channel carrier error: ±1.5dB Antenna port: 50 Ω Operating temperature: -10℃~+80℃ Camera connetor: JST-0.8, compatible with camera like BETAFPV C01, BETAFPV C02 and NewBeeDrone BeeEye.
