Bo mạch điều khiển hệ thống at070tn90 / 92 / 94 7inch VGA 50pin LCD chuyên dụng

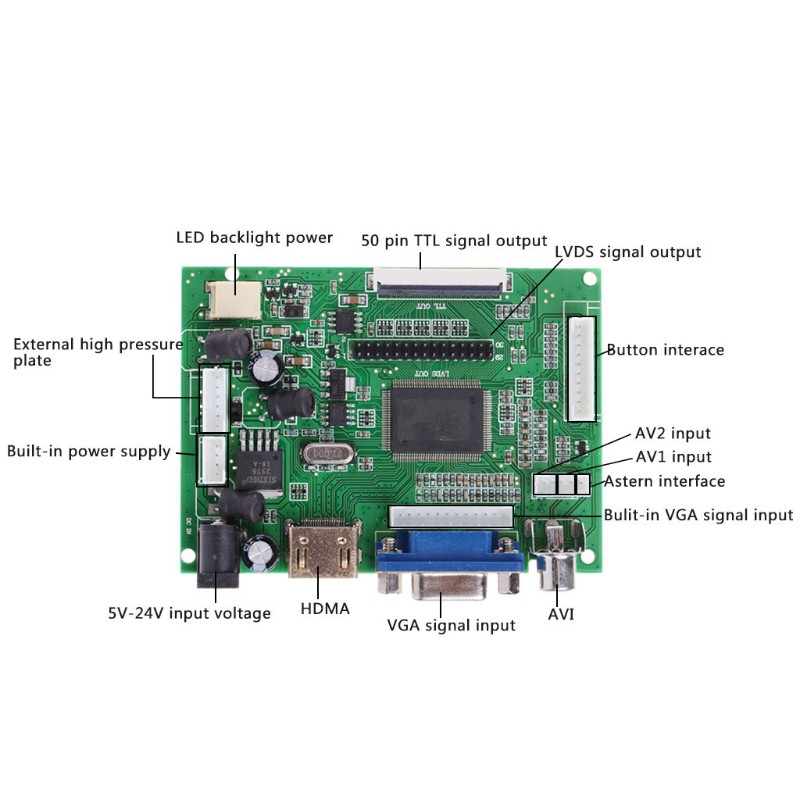

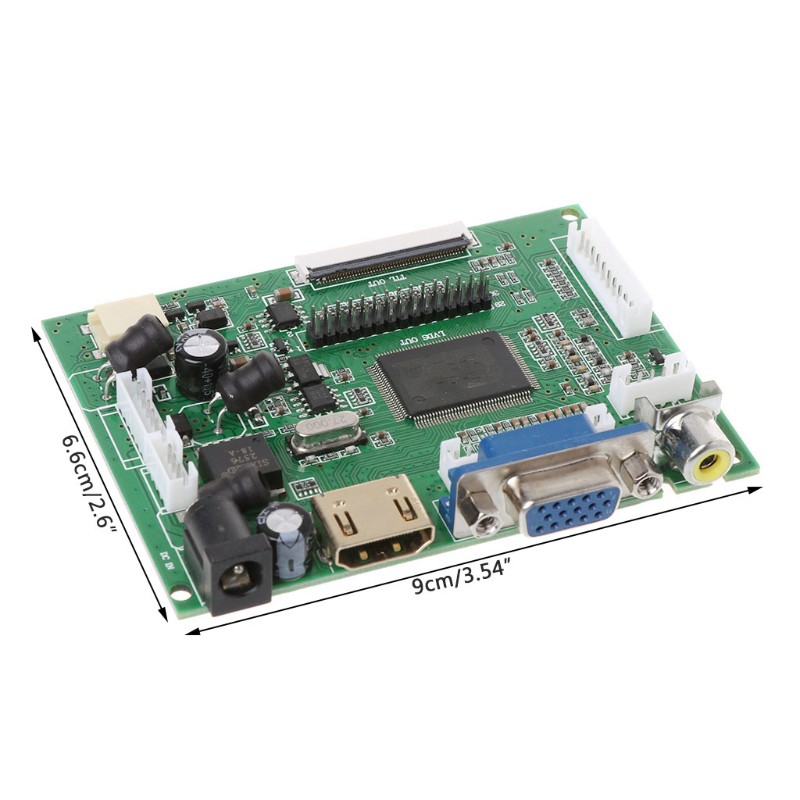

The drive plate can be 1 VGA signal input 2 AV signal input 4 way reversing signal input To support the wide voltage input,and can be in,5V-24V between normal work,Standard backlight 6PIN,interface,can be connected to high pressure plate The driver board integrated LCD screen LED backlight driver board The standard LVDS signal output,can support a single 8,single 6,double 6,double 8 and other standard LVDS signal of the LCD screen,but only the support screen power supply for the 3.3V LCD screen Standard key board interface,and supports dual color LED indicator display Support TTL signal output Can support AT070TN92 AT065TN14 AT080TN52 AT090TN12 AT090TN10 AT070TN90 AT070TN93 AT070TN94,etc.,universal TTL interface 50PIN LCD screen TTL out port have changed if you use for other screen,pls leave panel number,the program is different. Size:9x6.6cm/3.54x2.6inch Note: Please allow 1-3mm error due to manual measurement.pls make sure you do not mind before you bid. Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you! Package Includes: 1x LCD Driver Board
