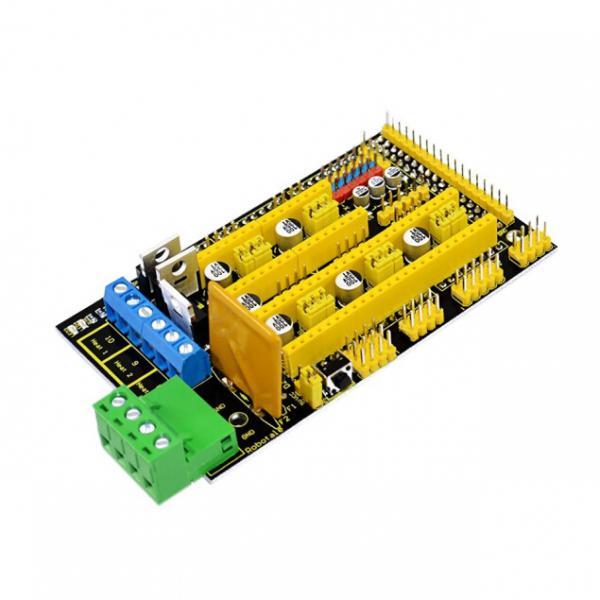

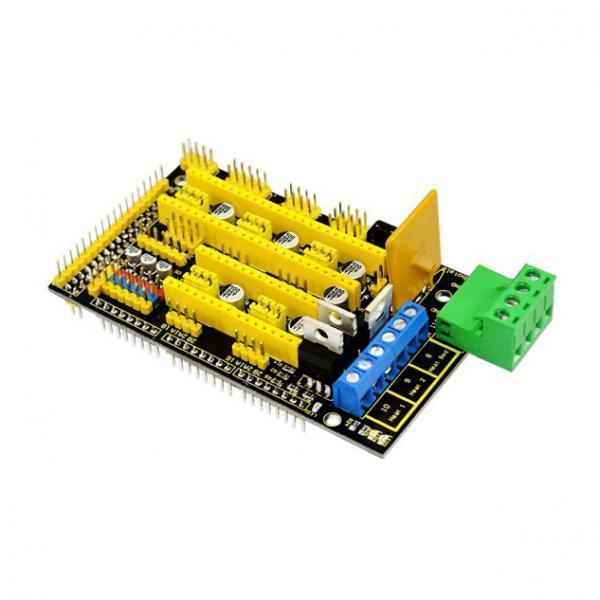

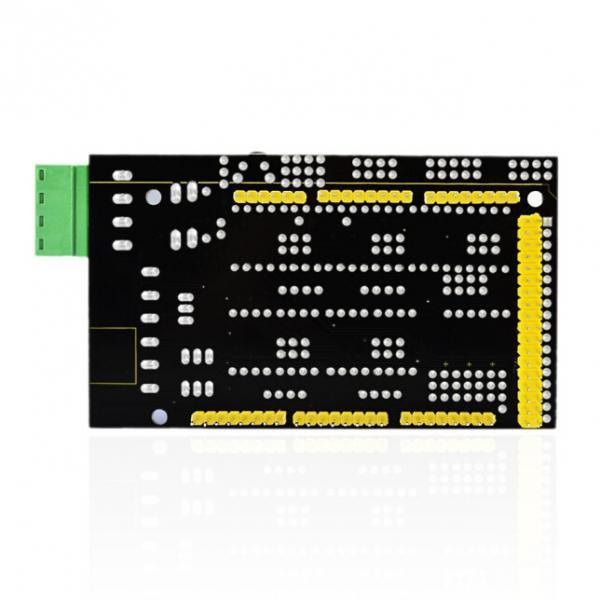

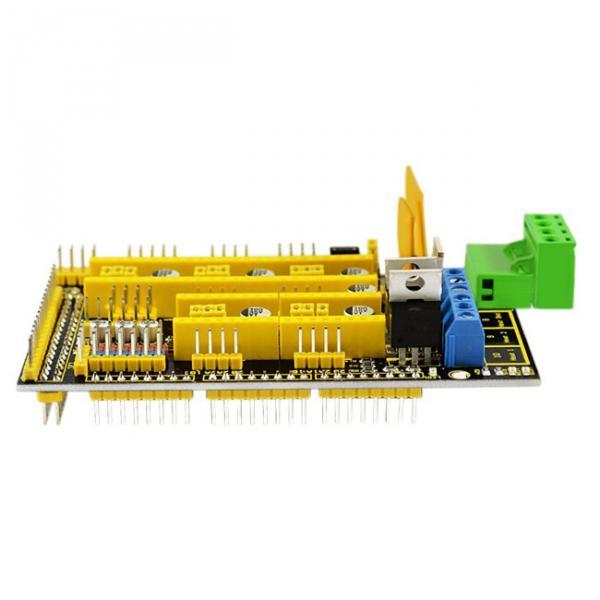

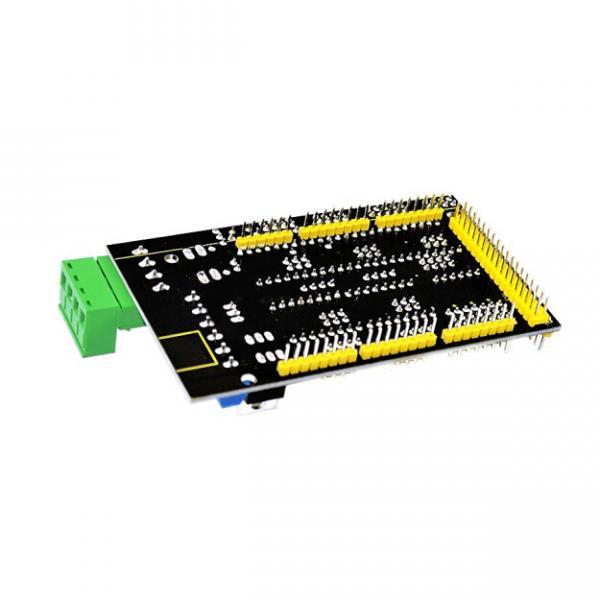

Controller RAMPS 1.4 for

Description: It is a RAMPS for short, designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino Mega with the powerful Arduino MEGA platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Specification: Has provisions for the cartesian robot and extruder; Expandable to control other accessories; 3 mosfets for heater / fan outputs and 3 thermistor circuits; Fused at 5A for additional safety and component protection; Heated bed control with additional 11A fuse; Fits for 5 Pololu stepper driver board; I2C and SPI pins left available for future expansion; All the Mosfets are hooked into PWM pins for versatility; Servo style connectors are used to connect to the endstops, motors, and LEDs. These connectors are gold plated, rated for 3A, very compact; SD Card add on available LEDs indicate when heater outputs on Option to connect 2 motors to Z for Prusa Mendel Package Includes: 1 x Ramps 1.4 Module Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
