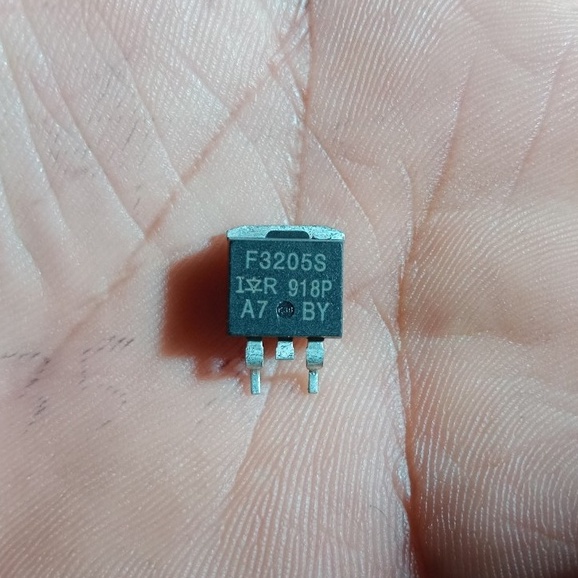

Mosfet Dán IRF3205 TO-263 110A 55V Kênh N
MOSFET Dán IRF3205 IRF3205S TO-263 55V/110A SMD (Kênh N) Thông số kỹ thuật: FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 55V Current - Continuous Drain (Id) @ 25°C 110A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max)
LinhKien589
@linhkien589Đánh giá
Theo Dõi
Nhận xét
MOSFET Dán IRF3205 IRF3205S TO-263 55V/110A SMD (Kênh N) Thông số kỹ thuật: FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 55V Current - Continuous Drain (Id) @ 25°C 110A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 8 mOhm @ 62A, 10V Vgs(th) (Max) @ Id 4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 146nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 3247pF @ 25V FET Feature - Power Dissipation (Max) 200W (Tc) Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Surface Mount Supplier Device Package D2PAK Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Datasheet: https://www.infineon.com/dgdl/irf3205spbf.pdf?fileId=5546d462533600a4015355defac9190c
